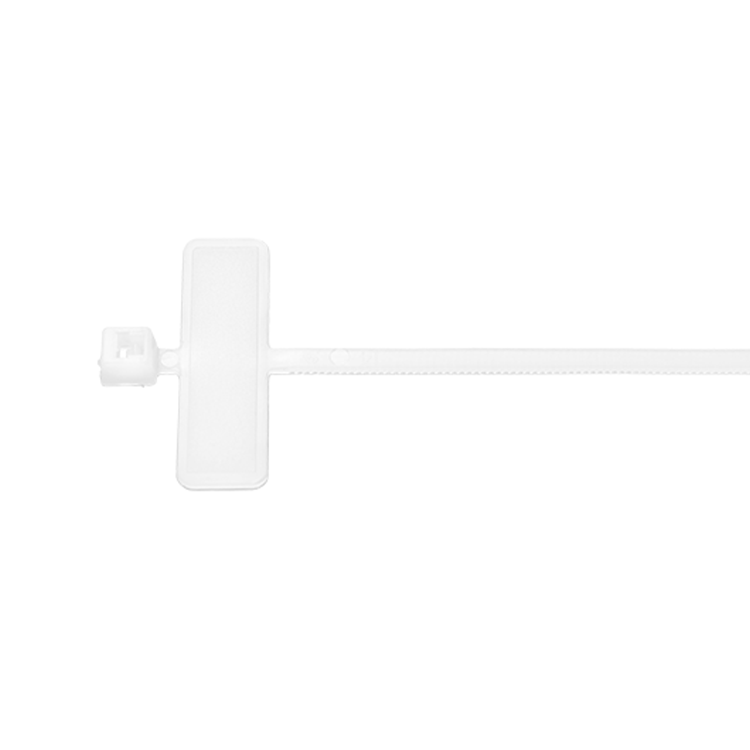

4" Identification Cable Ties

Our Identification Tie features an overall strap length of 4" (101.6mm). The custom tie imprinting lasts longer than heat stamping, has easy to read characters, resists fading, is water and scratch resistant and is still highly customizable with a wide range of characters, sizes, and styles. It has many imprinting capabilities such as sequential/non-sequential numbering and letters, serial numbers, and logos. Each tie can fit up to 34 characters, depending on cable tie width and length.

Also available an overall strap length of 7.5"(190.5mm)

Attribute
Specifications
Bundle Diameter 0.19" - 0.88" (4.7mm - 22.2mm)
Environmental Requirements General Purpose
Width 0.095" (2.4mm)
Thickness 0.041" (1mm)
Minimum Tensile Loop Strength 18 lbf. (80 N)
Strap Length 4" (101.6mm)
Operating Temperature -20 to 85°C / -68 to 185°F
Quantity Per Case* 5M

*M = 1000

Part # Color Quantity Per Bag*
08412-0 Natural 1M
08417-0 Natural 100
10031-0 White 1M
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08412-0 MS-3368-5-9E PLM1M-M TY53M
08417-0 MS-3368-5-9E PLM1M-C TY553M
10031-0   PLN1N-M10
