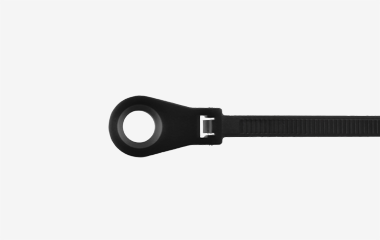

11" Screw Mount Cable Ties

Our Screw Mount Ties feature an overall strap length of 11" (279.4mm) and are ideal for use when precision matters. They keep applications secure and positioned in exact position. Often used when a part is pre-mounted to a surface prior to the final assembly.

Also available in an overall strap length of 7.5"(190.5mm) and 14.5"(368.3mm).

Attribute
Specifications
Bundle Diameter0.06" - 3.00" (1.6mm - 76.2mm)
Width0.177" (4.5mm)
Thickness0.05" (1.2mm)
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length11" (279.4mm)

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*Quantity Per Case*
10350-0General Purpose
Natural-40 to 85°C / -40 to 185°F
1M
5M
10351-0Heat Stabilized
Black
-40 to 105°C / -40 to 220°F
1M
5M
10352-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
1M
5M
10354-0Weather/UV Resistant
Black-40 to 80°C / -40 to 176°F
1001M
Part #Panduit Cross Reference
10350-0PLC3S-S10-M
10351-0PLC3S-S10-M30
10352-0PLC3S-S10-MO
10354-0PLC3S-S10-CO
