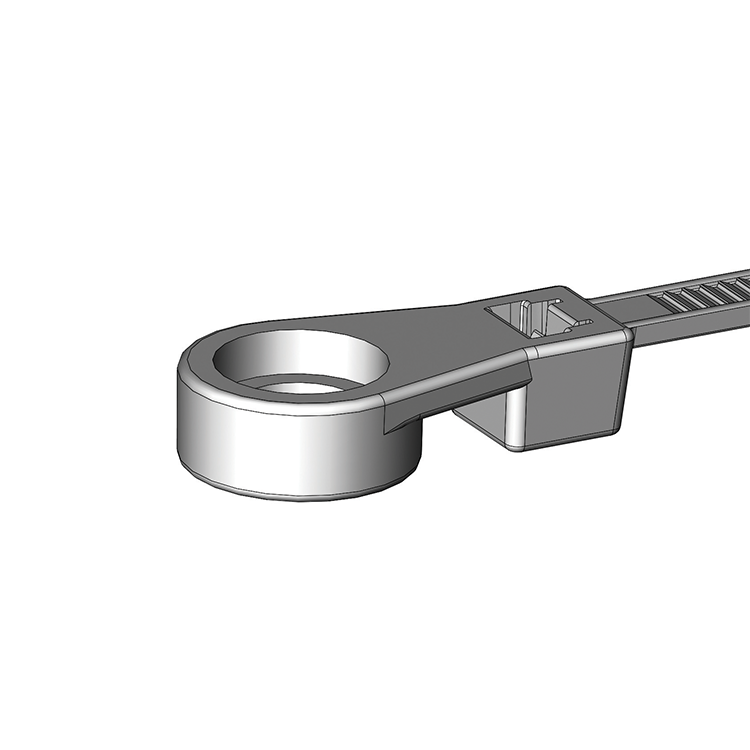

20044-0

7.5" M8 MOUNT GREY HS

Weld Stud Ties are ideal for bundling wires, hoses, and tubing and for attaching the bundle to a threaded stud. Weld Stud Ties are designed to fit over threaded bolts that protrude from a surface. They take very little force to insert and much greater force to remove. Avery Dennison offers two types of bolt mount ties: Self affixing and low profile mount ties. Self affixing profiles require no additional fastening and have a high retention to insertion ratio for ergonomic compatibility. Sizes range from M5/T5 to M12. Low profile bolt mount ties are ideal for applications where space is limited. Profile sizes range from M5 to M10. They require additional fixation. Low profile mount ties can be used as temporary holes for other fir tree fasteners.

- Stability on bolt

- Can be used in combination with low profile mount ties

- Can be inserted onto bolt sizes from 3.0mm to 9.0mm

- Available in variety of resins designed to meet T3 and T4 temperature profiles

- Low profile, compact options

Attribute
Specifications
Application Threaded Stud
Fastener Type Stud Mount
Mating Feature Bolt / Stud
Mount Size M8
Bundle Diameter 0.25 - 1.75" (6.3 - 44.5 mm)
Minimum Stud Height ≥ 5.0mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Gray
Insertion Force (lbf)

Max.    - 10

Typical - 8

Retention Force (lbf)

Min.     - 6

Typical - 8

Min. Loop Tensile Strength
50 lbf. (222 N)
