11" Releasable Ties

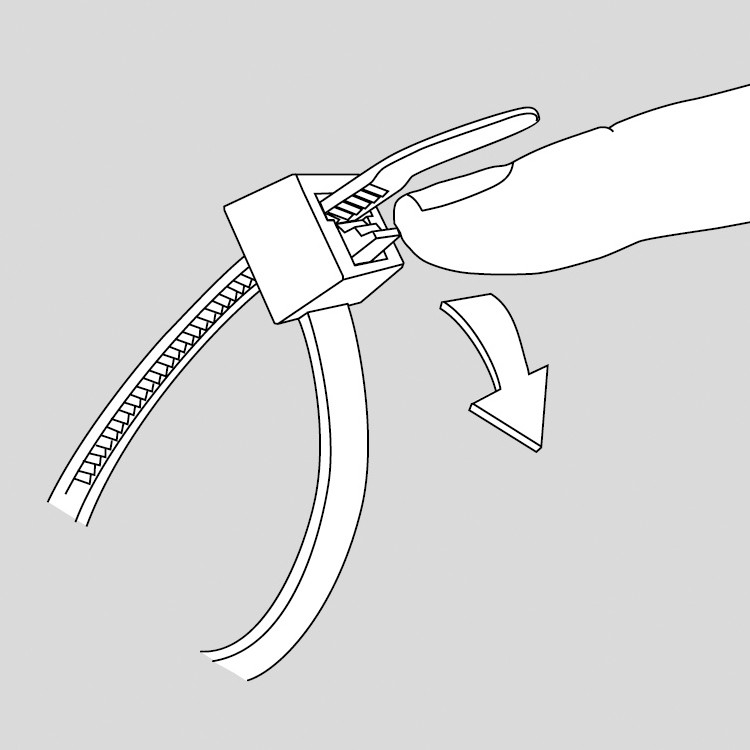

Our Releasable Cable Ties feature an overall strap length of 11" (279.4mm) and are used for prototype installations or for equipment requiring requent modifications or service. Simply press the tab to remove the tie. Releasable Cable Ties are easy to use and can be used again and again.

Also available with an overall strap length of 7.5"(190.5mm).

Attribute
Specifications
Bundle Diameter 0.06" - 3.00" (1.6mm - 76.2mm)
Width 0.177" (4.5mm)
Thickness 0.05" (1.2mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length 11" (279.4mm)

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
10367-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 1M
10368-0 Heat Stabilized
 Black
 -40 to 105°C / -40 to 221°F
 1M
10369-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
10370-0 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 100
Part # Panduit Cross Reference Thomas and Betts Cross Reference
10367-0 PRT3S-M TRY508
10368-0 PRT3S-M30
10369-0 PRT3S-MO
10370-0 PRT3S-C
